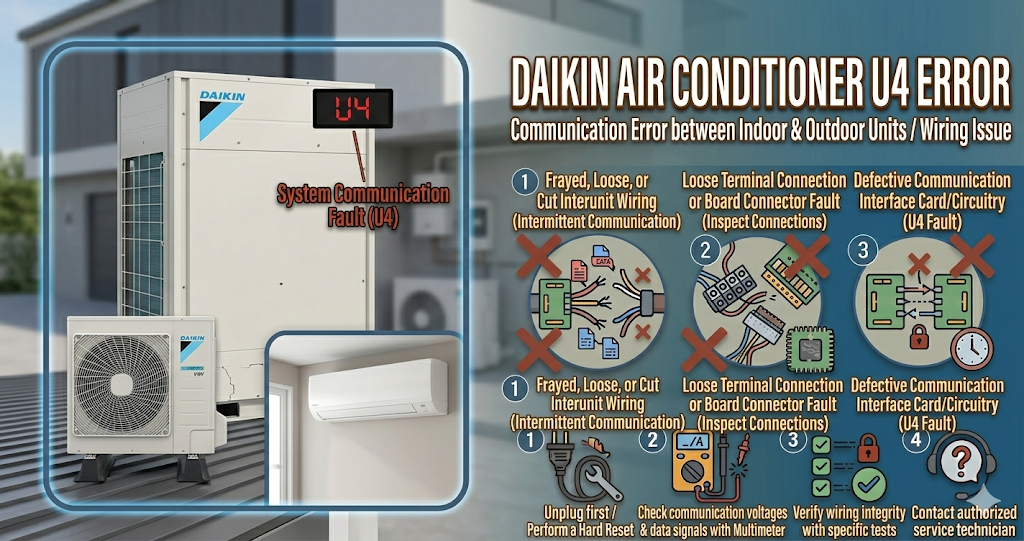

The Daikin air conditioner U4 error code indicates a critical communication failure between the indoor wall unit (the fan coil) and the outdoor unit (the compressor/condenser). This means the microcomputers located in both systems are no longer sending and receiving signals to coordinate the cooling or heating cycle. While diagnosing the Daikin air conditioner U4 error can sometimes point to a fried computer board, it is very often caused by a simple power supply drop, a tripped breaker, or a loose transmission wire that you can inspect yourself.
⚠️ SAFETY FIRST: You will be diagnosing a heavy-duty HVAC system that runs on lethal 240-volt electrical currents. Always completely turn off the dedicated double-pole circuit breakers for both the indoor and outdoor units at your home’s main electrical panel before opening any access covers.
What Causes the Daikin Air Conditioner U4 Error Code?
When your wall controller or remote flashes the Daikin air conditioner U4 error, the system locks itself down to prevent operational damage. The most common triggers for this signal loss include:
- Partial power loss: Daikin systems require both the indoor and outdoor units to have power to communicate. If the circuit breaker for the outdoor unit has tripped, but the indoor unit is still on, the indoor unit will throw the U4 code because it cannot “hear” the outdoor unit.
- Loose or broken transmission wires: The low-voltage communication wires (often labeled F1 and F2, or 1, 2, and 3 depending on the model) connecting the two units have vibrated loose from their terminal blocks, or pests have chewed through them outside.
- Blown fuses: A sudden power surge or a lightning strike may have blown the small glass communication fuses on the outdoor unit’s Printed Circuit Board (PCB).
- Fried PC Board: In the worst-case scenario, the main electronic control board in either the indoor or outdoor unit has suffered a catastrophic short circuit and is completely dead.
Tools You Will Need for This Repair
To properly troubleshoot the Daikin air conditioner U4 error and inspect the wiring, gather these essential tools:
- A digital multimeter (crucial for checking voltage and continuity).
- A Phillips-head and a flathead screwdriver (to remove the electrical access panels).
- A flashlight to inspect the outdoor unit’s LED status lights.
How to Fix Daikin Air Conditioner U4 Error Step-by-Step
You can often narrow down the root cause of the Daikin air conditioner U4 error in under 30 minutes by following these DIY troubleshooting steps:
- Check Both Circuit Breakers: Go to your main electrical panel. Ensure that the breakers for both the indoor AC unit and the outdoor condenser are firmly in the “ON” position. If one has tripped, flip it completely off, then back on.
- Inspect the Indoor Wiring: Turn all power off. Remove the front plastic cover of the indoor wall unit. Locate the electrical terminal block on the right side. Ensure the communication wires are screwed down tightly into their designated terminals and that no bare copper is touching the metal chassis.
- Inspect the Outdoor Wiring: Go outside to the compressor. Remove the side metal access panel covering the electrical connections. Check the F1/F2 (or 1/2/3) terminal block. Tug gently on the wires to ensure they are secure and not corroded by rain or moisture.
- Check the Outdoor Board LEDs: Turn the power back on temporarily. Look closely at the main green circuit board inside the outdoor unit. You should see a blinking green LED light (often labeled HAP). If the light is blinking steadily, the board is healthy and thinking. If the LED is completely off or solid green without blinking, the outdoor board is dead or not receiving high-voltage power.
How to Reset a Daikin Air Conditioner (Hard Reset)
After checking the wiring or flipping a tripped breaker, you must clear the Daikin air conditioner U4 error from the microcomputer’s memory. Because Daikin systems store error codes persistently, you need to perform a hard reset. Turn off the circuit breakers for both the indoor and outdoor units. Leave them completely off for at least 15 to 20 minutes to allow the internal capacitors to drain. Turn the power back on and wait 3 minutes for the units to establish their communication handshake before turning the AC on with the remote.
When to call a professional?
If you have verified that both units have power, the transmission wires are perfectly intact and tightly secured, and the hard reset did not work, but the Daikin air conditioner U4 error persists, you are dealing with a dead PCB. Because diagnosing Daikin inverter boards requires specialized training, testing complex DC voltages, and ordering proprietary OEM components, it is strongly recommended to contact a certified local Daikin HVAC technician to replace the faulty computer board safely.
