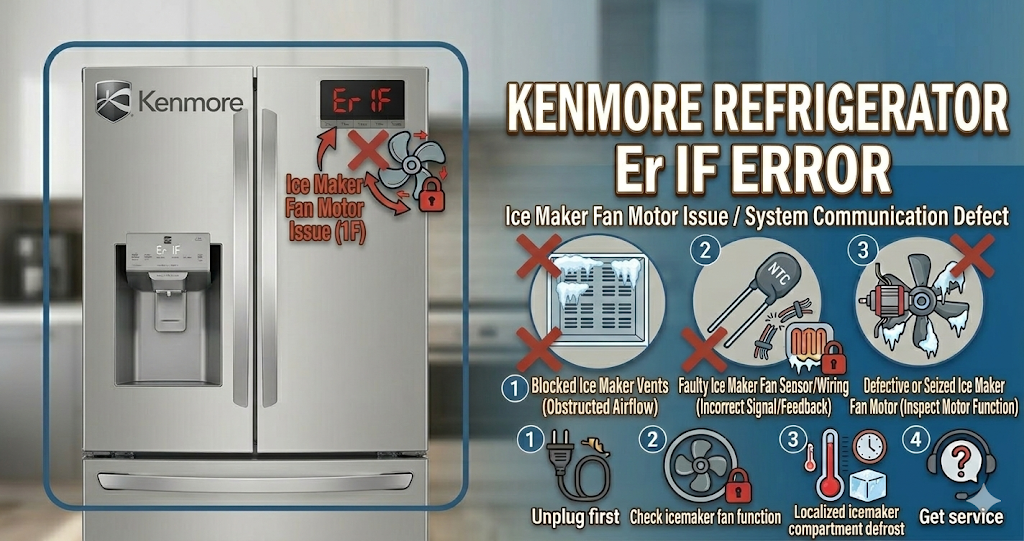

The Kenmore refrigerator Er 1F error code indicates a critical communication failure between the main electronic control board and the ice compartment fan (or the main evaporator fan). This means the central computer has lost the signal from the fan motor, preventing the refrigerator from circulating cold air properly. Fortunately, clearing the Kenmore refrigerator Er 1F error is often a matter of melting a hidden block of ice or securing a loose wire rather than immediately replacing the expensive main board.
⚠️ SAFETY FIRST: You will be diagnosing high-voltage electrical components and working near delicate cooling coils. Always unplug your refrigerator from the wall outlet or flip the dedicated circuit breaker before removing any interior or exterior panels to prevent electric shock.
What Causes the Kenmore Refrigerator Er 1F Error Code?
When your digital display flashes the Kenmore refrigerator Er 1F error, the internal fan has either stopped spinning or the computer can no longer detect its rotation. The most common triggers for this communication loss include:
- Severe ice buildup: Warm, humid air entering the fridge turns into thick frost that physically encases the fan blades. The motor tries to spin, stalls against the ice, and the computer registers a failure.
- Faulty fan motor: The constant exposure to freezing temperatures and moisture has finally ruined the small electric motor’s internal coils, causing a complete electrical short.
- Loose wiring harness: The wires connecting the fan motor to the main electronic control board at the back of the fridge have vibrated loose or become corroded by moisture.
- Main control board failure: In worst-case scenarios, the main computer board itself has suffered a short circuit and is no longer sending the required voltage down to the fan circuit.
Tools You Will Need for This Repair
To properly diagnose and resolve the Kenmore refrigerator Er 1F error, gather a few basic tools before you start:
- A 1/4-inch nut driver or Phillips screwdriver (to remove the interior panels).
- A portable steamer or a hairdryer on a low, warm setting.
- A digital multimeter (to test the fan motor and the wire harness for continuity).
- Thick towels to catch melting ice.
How to Fix Kenmore Refrigerator Er 1F Error Step-by-Step
You can often clear the Kenmore refrigerator Er 1F error and save your groceries in under an hour by following these DIY troubleshooting steps:
- Empty the Compartment: Remove all food, shelves, and ice bins from the affected section (usually the freezer or the dedicated ice room) to give yourself clear access to the back panel.
- Access the Fan Assembly: Use your screwdriver or nut driver to carefully remove the mounting screws on the back interior wall. Gently pull the plastic panel forward. Do not yank it, as the fan wires are attached behind it.
- Melt the Ice Blockage: Look closely at the fan blades. If you see a solid wall of white frost or clear ice blocking the vents, the fan is frozen stuck. Use your steamer or a hairdryer on a warm setting to gently melt the ice buildup. Never use a knife to chip the ice, as you will puncture the freon lines.
- Inspect the Wiring Harness: Once the ice is melted, check the plastic wire connector attached to the fan motor. Unplug it, check for rust or green corrosion, and plug it back in firmly to ensure a solid electrical connection.
- Test the Fan Motor: If the blade spins perfectly freely by hand and the wiring looks pristine, the motor itself might be dead. You can use your multimeter to check the motor pins for continuity. If it reads infinite resistance (OL), order an OEM replacement fan.
How to Reset a Kenmore Refrigerator (Hard Reset)
After melting the ice, securing the wiring, or fixing the Kenmore refrigerator Er 1F error, you must force the main computer to reboot and clear the code. Unplug the refrigerator from the wall for at least 5 to 10 minutes to allow the main board capacitors to discharge completely. Plug it back in, close the doors, and wait to hear the fan kick on.
When to call a professional?
If you have verified the fan blade spins freely, installed a brand new fan motor, and the fridge still displays the Kenmore refrigerator Er 1F error and remains warm, you are likely dealing with a burnt relay on the main electronic control board. Because diagnosing and replacing the main board requires testing live voltage and reading complex wiring schematics, it is strongly recommended to contact a certified local appliance technician to test the components safely.
